1. Introduction
In Mexico, high rates of hydric stress are observed in certain hydrographic basins due to the intense degree of pressure exerted on surface waters in conjunction with the contamination of aquifers. This is a consequence of the low integration of productive processes with the ecosystem, which finally causes alterations in the hydrological cycle. This phenomenon is more evident in mono-productive communities of agricultural and/or extractive scenarios.
In particular, central and northwestern Mexico present a high degree of pressure on water resources. These regions use up to 40% of the available renewable water in the basin for agricultural production. In these areas, in addition to finding kilometers of irrigation canals woven between the agricultural fields that also cross the urban fabric, there are large dams for storage and distribution of water in order to serve the agricultural cycles of the irrigation districts. According to the estimates of the Food and Agriculture Organization (FAO, 2011) Mexico ranks 7th in the world classification of countries with the highest water extraction and percentage of agricultural use with a total of 87,84 thousand million m3/year. Of this total, 76% is used for agricultural activities (CONAGUA, 2018). According to the projections of the World Water Assessment Program (WWAP) of UNESCO, by the year 2050, agricultural activity will need to increase its production by 60% globally. Developing countries will need to increase production by 100%.
Consequently, the values of virtual water for basic products suggest that the hydrographic basins should be protected and the communities within their limits restructured to safeguard the hydrological cycle. These values include: 15.415 liters needed to produce 1 kilogram of beef, 1.222 liters per kilogram of corn, and 1.000 liters of water needed to procure 1 liter of milk (Arreguín Cortés et al., 2007; CONAGUA, 2018).
By determining water as the guiding axis of urban narrative, this research leans towards a water efficient urbanism. To generate urban proposals compatible with basin restoration, it is necessary to analyze the structure of the territory in all its components. In this field of territorial vision, the contributions of Xabier Eizaguirre (1990; 2019) are a valuable theoretical core, as well as the contributions of Solà-Morales (1973, 1989) and Giuseppe Dematteis (2004). But also, practical approaches in the Mexican context, such as the efforts of Mario Schjetnan (2020) to value the roots of agricultural landscape and more specific analysis such as: Chairez Araiza (2005) in studying the impact of river regulation in the Laguna region. The objective is to combine the cartographic information available on indicators of water quality, degree of pressure on water resources, and agricultural production surfaces, with urban morphological information within the limits of the hydrographic basins, to build hydric-urban indicators and by them generate restructuring strategies for hydro-agricultural infrastructure and urban restructuring plans. The foregoing, to reformulate the agricultural mono-productive models present in the basins under hydric stress, in models that contribute to the objectives of hydric stabilization.
Theoretical approaches to urban planning through the use of the hydrographic basin as a unit of urban analysis are in constant evolution. Regarding analysis and management, the next publications can be cited: (Dourojeanni et al., 2002), (Pallarés Serrano, 2007. From an instrumental view: (Leopold, 1968), (Hernández-Tapia, 2017), (Acosta et al., 2015), (Rotger, 2019), (Suárez López et al., 2014), (Duque & Echeverry, 2015), (Gómez et al., 2011). Also in the urban environment, there are approximations of a more epistemological order such as: (Vian et al., 2020), (Domínguez Serrano, 2013), (Escudé, 2010).
2. Hydrological Region 36, Irrigation District 017 and Irrigation Units
Hydrological region 36[1] is composed by 5 main basins subdivided into 33 sub-basins (Table.01). Together, they contain an area of 90,634.65 km2, in a perimeter of 3,312.43 km2. A total of 1.125 towns are located on this area, of which 1.058 are rural and 67 are urban.[2] The sub-basin is the minimum unit of geospatial information provided by CONAGUA,[3] falling outside smaller units such as the micro-basin or the urban basin. The RH36 contains the defined[4] limits of 27 aquifers, of which 9 are overexploited. They are those located in the Laguna region where the largest amount of population in the hydrographic region is concentrated.
The hydrographic system contains the Nazas and Aguanaval rivers. Both endorheic[5] channels flow into the lowlands of the hydrological region where a set of lagoons were once located, now dried up, including the Mayran lagoon (Nazas river) and the Viesca lagoon (Aguanaval river). The lower zone of RH36 lacks a constant flow in the natural courses of the Nazas and Aguanaval rivers, due to the effects of climate change, but mainly due to the construction of hydro-agricultural infrastructure between the decades of 1940-1970, through the incorporation of dams and irrigation canals. The hydro-agricultural infrastructure serves irrigation district 017,[6] located in the RHA Laguna Region VII, which extends over 71.964 has, 49.835 are irrigated with surface water, the rest with groundwater (CONAGUA, 2018, p. 288). Additionally, irrigation units[7] (UR) with a planted area of 295.723 has are added to this irrigated area. Paradoxically, despite the large amounts of water needed to produce milk, beef, or crops to feed cattle, the Laguna region is a large producer of dairy products and derivatives, dominant in Mexico and the American continent. This mono-productive cycle transforms the water resources of the RH36 into export products, compromising the return of the water in the basin to its natural cycle.
The environmental problems of RH36 and DR017 are linked to poor management of water resources at the basin level. In addition to the scarcity of water in the Nazas and Aguanaval riverbeds in the lower basin, the aquifers have been at extreme levels of exploitation for decades that exceed recharge capacities due to the intensification of the pumping volume. The low availability of surface water is concentrated in 75% for small owners and 25% for ejido[8] communities (Cruz & Levine, 1998, p. 23). Under these circumstances, the rural-agricultural and urban-agricultural model of the region, (both of the mono-productive order) cause unsustainable stress for the hydrographic region. It is necessary to establish water balance strategies by reordering their models.
3. Method
Integration of geospatial data with hydric information

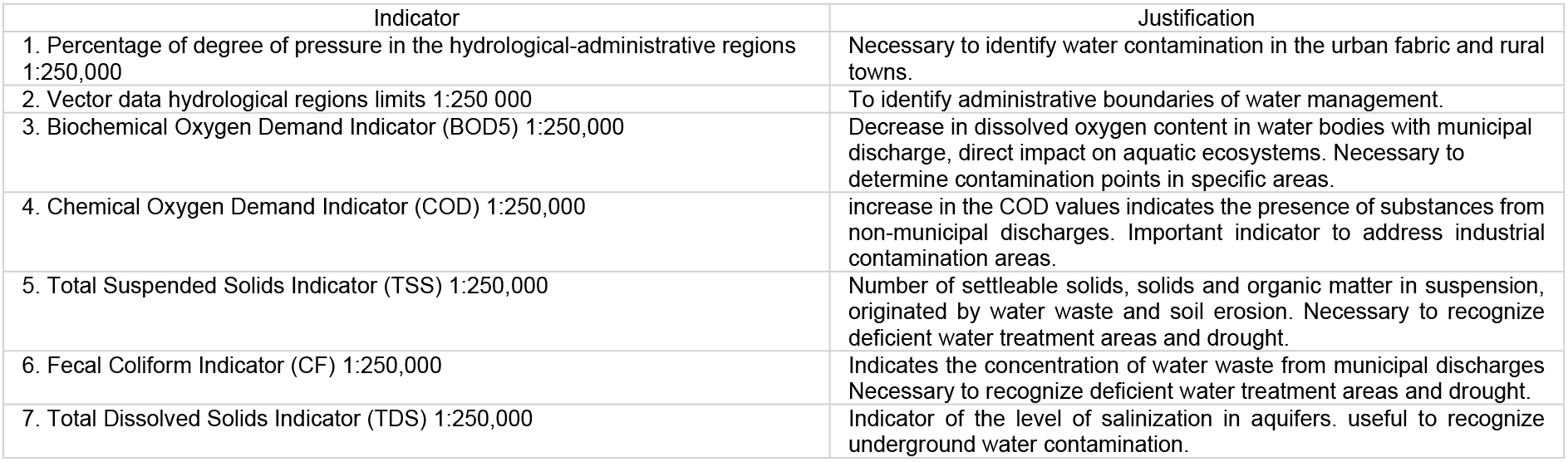

Through GIS (Geographic Information System), the main vector data of water quality indicators and the degree of pressure on water resources provided by the SINA[9] are integrated. The superposition and geolocation of these indicators facilitates the observation of basins with high values of hydric stress in their geographical limits. The incorporated data for reading the hydric alterations in the hydrographic basins are listed in Figure 1.
Additionally, the analysis of water quality indicators is complemented by the publications: Estadísticas del agua en México 2018 and Atlas del agua en México 2018 in order to obtain a holistic view of the state of surface and groundwater.
Construction of hydric-urban cartography

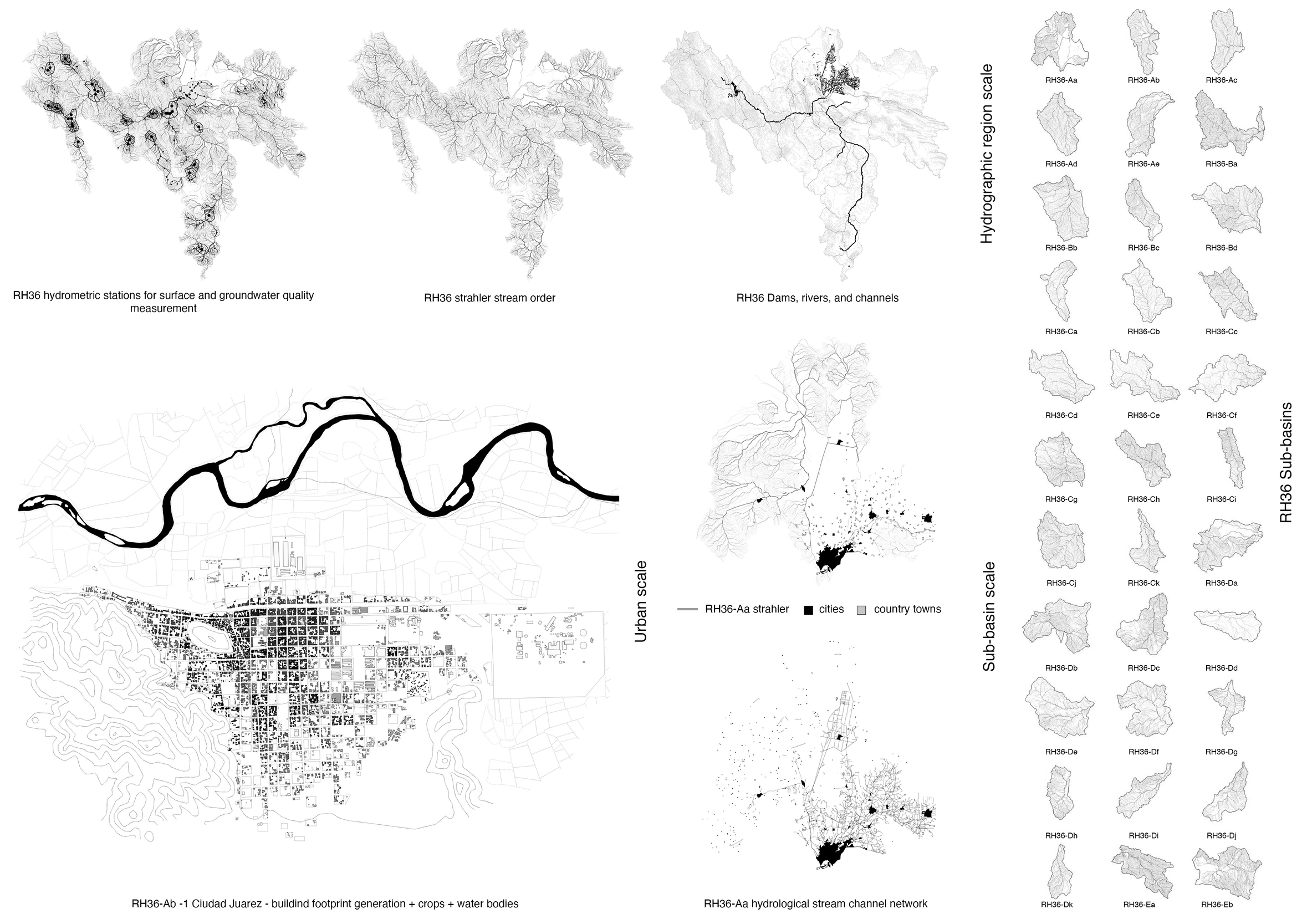

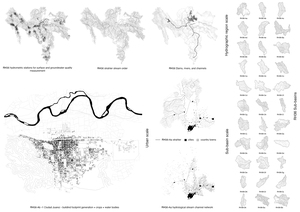

To build hydro-urban cartographic information compatible with the geospatial data of the hydrographic basins, and the available cultivation surfaces in the Mexican territory, an organization and hierarchy of the information layers is carried out with the help of GIS software, using a multi-scale approach from the geographic to the urban scale. Geostatistical data in vector format provided by INEGI, RAN[10] and SINA are used. The information used is listed in Figure 2.
Building footprint data generation
In Mexico, building footprint vector data is not accessible on the INEGI open data system. At the cadastral level, cartographic information is decentralized,[11] and consequently depends on state and municipal administrations. In the RH36, the geospatial data of the buildings is not available in the majority of the cadastral institutes of the urban localities, nor in the rural communities of the basin. The efforts of the cadastral institutes are concentrated on homologating maps in raster format and do not have cartographic databases under an open data standard.[12] For this reason, for a morphological analysis of all the towns of the basin it is necessary to generate the building information.
There are multiple vector generation techniques based on the analysis of high-resolution images in raster format resulting from geospatial information (Gede et al., 2020). These methods include: semantic segmentation,[13] neural networks,[14] machine learning,[15] or artificial intelligence.[16] All these technics can be used, in combination with GIS software for the extraction of vector information in specific geographic markers (Li et al., 2019), (Boos, 2018), (Borba et al., 2021). However, for the implementation of the mentioned tools, it is necessary to have high-resolution satellite images, and in those cases where there are no high-resolution records in the requested coordinates, manual vectorization is required. In order to generate the building information of the RH36 basins, a hybrid model is chosen, through the manual vectorization of medium resolution raster images and the use of semantic segmentation algorithm OTB-Segmentation included in QGIS this method allows obtaining a vectorial classification based on morphological profiles or basins.
Urban and rural agricultural models
In the context of this research, the model is composed by the urban or rural form of the community (streets, parcels, buildings), the productive agricultural surfaces, and their hydrological infrastructures. This composition enables a joint analysis of the productive flows and dynamics related to the consumption of water resources within the limits of the hydrographic basin.
4. Urban restructuring
With all the communities cataloged within the limits of the RH36, indicators are constructed combining the morpho-typological characteristics and the consumptive uses of water. The generation of these hydric-urban markers enables to visualize the territories under greater water pressure with urban and productive dynamics incompatible with a fluvial restoration project. Through this analysis, strategic criteria can be established for regional urban reorganization, in order to reduce the degree of pressure on water resources.
The results of the analysis on the urban and rural communities of the basin, based on the examination of the hydric resources dynamics, enables a geographic-urban approach to urban planning rather than a political-administrative approximation. The local instruments defined by the individual administrations of the states and municipalities should be adapted to the basin regulations, in the processes of city and housing construction.
Finally, it is pertinent to establish that the restructuring must protect the project logics of the communities (Raffa, 2022) that has best combined with the natural context in its temporal dimension (Bartorila & Loredo-Cansino, 2021). To achieve this, it is necessary to analyze the historical urban operations and fundamental transformations through their link with the use of water resources.
Restructuring through analysis of morphological patterns and water availability
The communities belonging to the basin must be restructured, according to their capacities, to provide protection to the regional hydrological cycle, and their importance for the fluvial restoration of the rivers. Agro-productive models must adapt to a regional basin logic. The forms of settlement that mainly affect the riverbeds must be reorganized. For example: to reduce the dynamics of contamination and overexploitation of aquifers, it is necessary to build protection spaces on the riverbanks and main recharge areas of the basin.
Restructuring of hydro-agricultural infrastructure
Storage and distribution structures for water resources have the potential to offer regional ecosystem services. This quality is useful in territories under water stress. For example: protected spaces can be generated in the lower zone of the RH36, these spaces can be planned as controlled areas for aquifer recharge. The modernization of dams, canals and wells is essential to promote water stability. This modernization must be carried out considering the construction dynamics and urban organization models.
5. Conclusions
As can be seen from the results obtained, the methodology developed in this research is applicable to various hydrographic contexts. The quality of the results will be related to the availability and accessibility of the information in each case. It can be concluded that it is possible to integrate the databases of the main indicators of water quality and availability of water resources, with the databases of urban systems, urban equipment, infrastructures and streets to determine the degree of pressure that the models of contemporary city, exert on water resources. The degree of pressure on water resources can be determined with the capabilities of the urban model to offer aquifer recharge surfaces, agro-productive models that allow the return of water to the ecosystem, and water-efficient construction systems for buildings.
In RH36, the proliferation of irrigation canals supported by the hydro-agricultural infrastructure has allowed the development of fluvio-dependent urban and rural models, with mono-productive tendencies, which have pushed the hydrographic reserves to the limit. These forms of anthropic organization are not compatible with a river restoration project for the Nazas and Aguanaval riverbeds, because their productive activities use water resources to generate products that do not allow the return of water to the hydrological cycle of the basin. The restructuring of all the RH36 communities implies the re-densification of their fabrics, the recategorization of productive spaces and the reconversion of obsolete infrastructures on a basin scale.
Understanding the hydrological cycle of each basin allows us to understand the natural elementary units of the fluvial morphology, and it is the task of a reordering strategy to combine the built environment values with the water values, mainly in their materiality. It should also be noted that, although the basins are the unit of study selected for this research, these pieces are related on a larger scale to the contiguous basins, functioning as hydrographic regions, until they reach the continental limits. The hydrological cycle is finally a global cycle, and the elemental functionality depends on the understanding of the stages from its smallest scale to its maximum global levels.
The hydrographic basins in Mexico (757) are organized into 37 hydrological regions (RH), these regions represent 13 administrative hydrological regions (RHA) (CONAGUA, 2018, p. 30). In this research, the RH is the study area limit because contains units defined by geographic relief and not by political-administrative boundaries such as the RH.
In Mexico, the distinction between a rural and an urban town is made by its population size. This indicator, defined by the National Institute of Statistics and Geography of Mexico, specifies that any community with more than 2,500 inhabitants is urban.
